Research & Development

Pilot Plants (R&D)

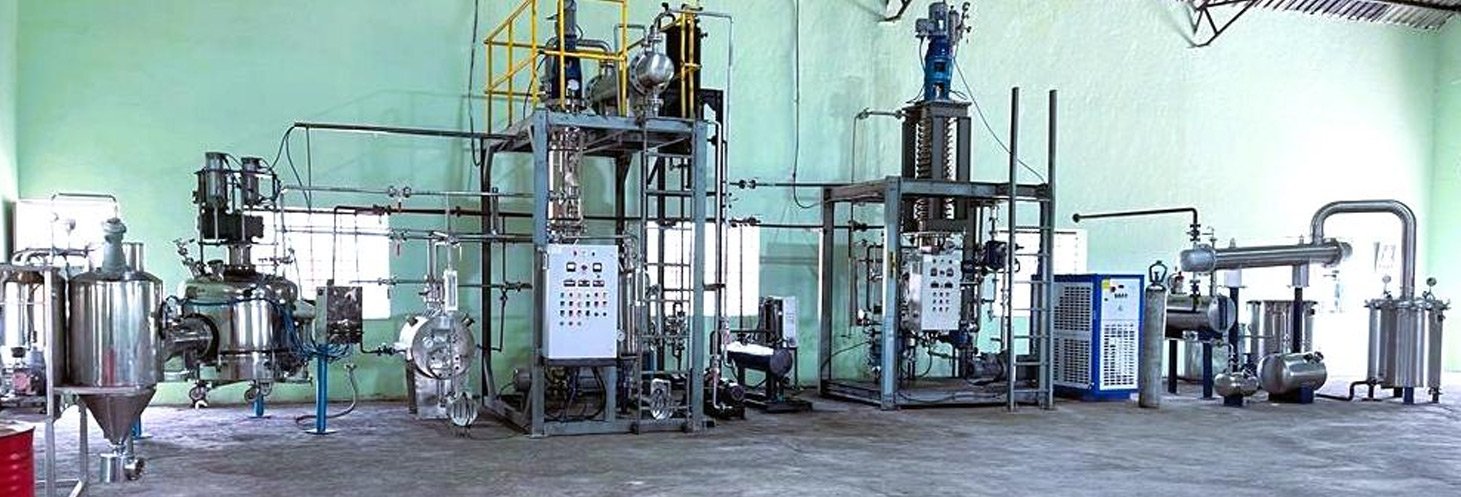

At our R&D centre, we offer a wide range of Pilot Plants, including ATFE, ATFD, Short Path Distillation Unit, ANFD and Spray Dryer. These systems help clients run process trials, allowing them to test and validate their designs with accuracy. By studying the process on a smaller scale, we ensure smooth performance before moving to full-scale industrial production.

After completing the trials, our engineering team analyses the results thoroughly. Based on the findings, we create customized plans for scaling up and manufacturing. This client-focused approach helps us provide reliable solutions and ensures satisfaction, making us a trusted name in the industry.

Types of Pilot Plant Available for Trial Purpose:

  • Short Path Distillation Unit (SPDU)
  • Agitated Thin Film Evaporator (ATFE) / Agitated Thin Film Dryer (ATFD)
  • Agitated Nutsche Filter Dryer (ANFD)
  • Spray Dryer

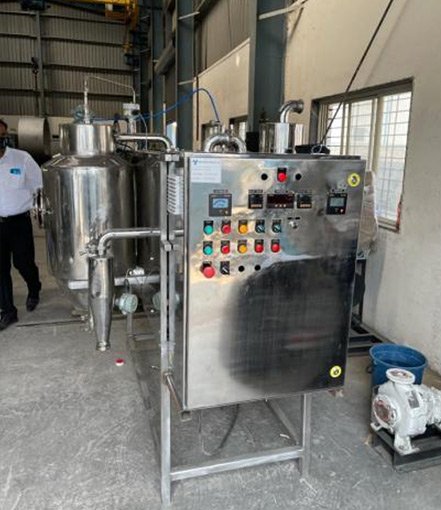

Short Path Distillation Unit (SPDU)

The trial unit shall be along with Feed Tank, Feed Pump, Short Path Distillation Unit along with Internal Condenser, Concentrate Receiver, Residue Receiver, Vacuum Pump, Hot Oil Unit etc

  • Feed Rate (Lit/hr): 10
  • Operating / Design Pressure (kg/cm2): FV
  • Operating / Design Temperature (Deg. C): 180 / 200
  • Hot Oil: Max. Temp: Up to 200 Deg C,
  • Chiller Capacity: 2 TR

Send Enquiry

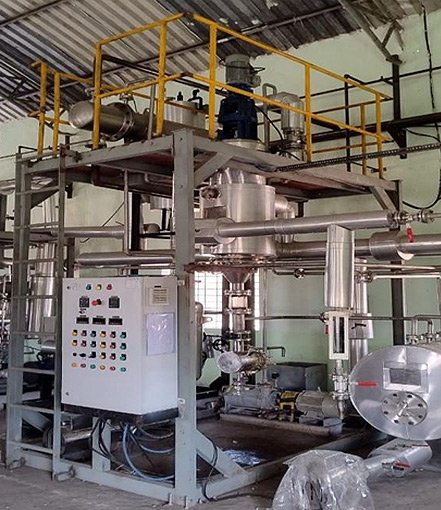

Agitated Thin Film Evaporator (ATFE) / Agitated Thin Film Dryer (ATFD)

The trial unit shall be along with Feed Tank, Feed Pump, ATFE, Condenser, Concentrate Receiver, Residue Receiver, Vacuum Pump, Hot Oil Unit etc. to conduct trail.

  • Operating Conditions at Our ATFE Pilot Plant
  • Feed Capacity: 100 Liters
  • Operating / Design Pressure (kg/cm²): 0.4 / 4.55
  • Operating/Design Temperature (°C): 42 / 150
  • Hot Oil: Max. Temp: up to 200 Deg C,
  • Chiller Capacity: 2 TR

Send Enquiry

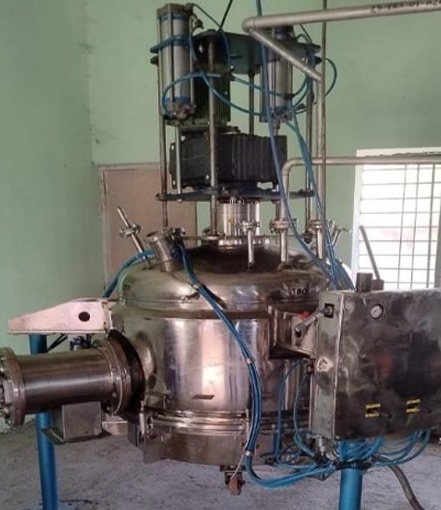

Agitated Nutsche Filter Dryer (ANFD)

  • Feed Capacity: 200 Liters
    Initial Feed Solid Handling Capacity: 50 kg
  • Operating / Design Pressure (kg/cm²): FV / 0.3
  • Operating / Design Temperature (°C): 80 / 100

Send Enquiry

Spray Dryer

The trial unit shall be along with Feed Tank, Feed Pump, Spray Chamber, Cyclone Separator, Bag Filter, Exhaust Blower, Electric Heater. etc.

Technical Specifications:

  • Feed Rate: 15 kg/hr @ 30% Moisture Approx.
  • Product Rate: 10 kg/hr Approx.
  • Evaporation Capacity: 5 kg/hr (max).
  • Design Temperature: up to 180 – 200 °C (Using Electrical Heater)

Send Enquiry
